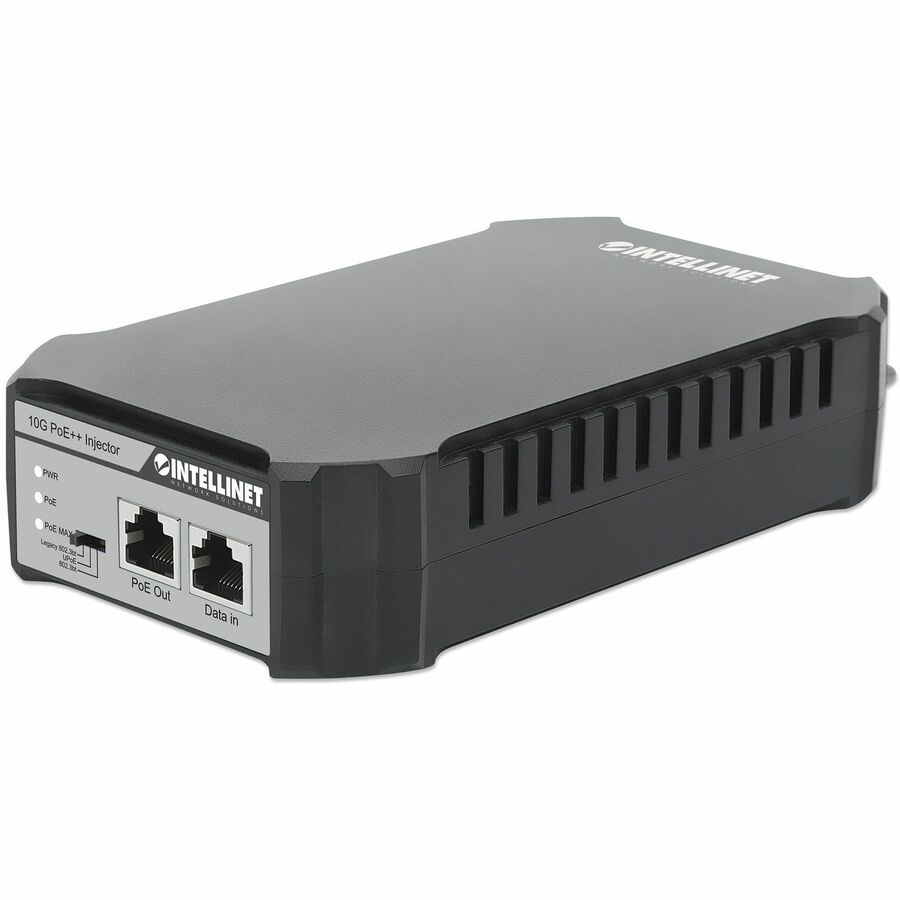

Intellinet 10G PoE++ Injector
- Item #:
- Category:
- Availability:
- Packaging:
- Platform:
- Condition:
- Brand:
- B-1017693
- Networking DC
- Special Order
- Retail Packaging
- N/A
- New
- Intellinet
(0 Ratings)
Next-gen 10 Gbps 95 W 4PPoE Injector - Supports 10/100/1000/2500/5000/10,000 Mbps and Power over Ethernet 802.3bt The Intellinet Network Solutions 10G PoE++ Injector lets you connect your IEEE 802.3bt/af/at-compliant wireless access point, IP phone, network camera and more to a non-PoE LAN switch port while providing the necessary PoE power up to 100 meters (328 ft.). This 10-Gigabit 4PPoE Injector has an output power rating up to 95 watts, which is enough for even very power-hungry PoE++ devices like motorized PTZ cameras, thin clients, point-of-sale systems, lighting controllers and digital signage applications. Full backward-compatibility with existing IEEE 802.3af/at Power over Ethernet devices The Intellinet Network Solutions 10G PoE++ Injector helps you connect your IEEE 802.3bt/af/at-compliant products to a non-PoE LAN switch port. The Injector features auto-sensing technology, so it always delivers the correct wattage the device needs, whether it's PoE (up to 15.4 W), PoE+ (up to 30 W) or PoE++ (up to 95 W). Reduced wiring costs It's no longer necessary to run AC power lines for your wireless access point, network camera or IP phone. Simply connect this PoE++ Injector to a LAN switch port, and use the existing network cabling to deliver DC power as well as transfer data. Safe protection for your expensive network equipment The auto-sensing technology of this high-power PoE Injector ensures that your products are protected from power problems like short circuits (short GND), current overloads and high voltages. Port surge protection up to 6 kV and ESD protection up to 8 kV make its safety complete. Wall-mount option For full installation flexibility, you can mount the injector on the wall through four built-in fixing points on the back panel. |
| Protection Type: | Short Circuit |
| Protection Type: | Overload Current |
| Protection Type: | Over Voltage |
| Protection Type: | Surge Protection |
| Protection Type: | ESD Protection |
| Input Voltage: | 120 V AC |
| Input Voltage: | 230 V AC |
| Maximum Output Voltage: | 54 V DC |
| Maximum Output Current: | 1.76 A |
| Maximum Output Power: | 100 W |
| Input Ports: | 1 x 10 Gigabit Ethernet |
| Output Ports: | 1 x 10 Gigabit PoE++ |
| Form Factor: | Wall Mountable |
| Height: | 1.6" |
| Width: | 3.9" |
| Length: | 6.8" |
| Weight (Approximate): | 1.10 lb |
| Package Contents: |
|
| Compatibility: | Compatible Devices:
|
| Certifications & Standards: |
|
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) |
| Country of Origin: | China |
| Limited Warranty: | 3 Year |
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
Special Order Item
This item ships directly from the manufacturer and is not stocked in our warehouse. If stock is available at the manufacturer, the item will ship directly to you, usually within 7 - 15 business days.
Once the order has been sent to the manufacturer it can no longer be canceled.
If payment is made via credit card it will be charged before the order is sent to the manufacturer.
You must contact the manufacturer directly regarding returns and defective items.
We will contact you by email if the item is sold out or backordered (and we were unable to update the site before you placed the order) or if the item will be delayed longer than expected.
We have no control over the speed of the manufacturer's order processing, or whether they will honor your request to ship the item by any particular method.
- UPC: 766623561945
- Mfr's Part #: 561945
