QNAP QSW-M7308R-4X Ethernet Switch QSWM7308R4XUS
- Item #:
- Category:
- Availability:
- Packaging:
- Platform:
- Condition:
- Brand:
- B-1047484
- Switches
- Special Order
- Retail Packaging
- N/A
- New
- Qnap
(0 Ratings)

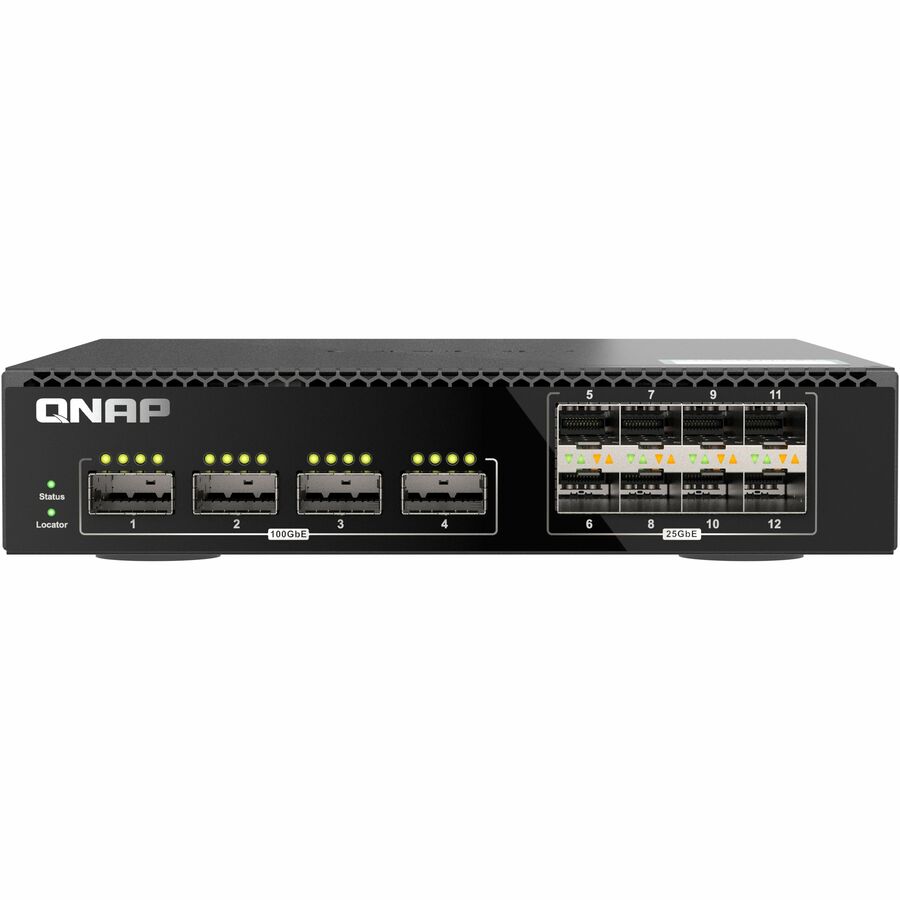

The QSW-M7308R-4X is a 100GbE L2 Managed Switch with four 100GbE QSFP28 and eight 25GbE SFP28 ports. The QSW-M7308R-4X can uplink to 100G/25G servers and NAS in server rooms or connect to 100G/25G switches to accelerate high-speed storage, video editing, virtualization, and AI applications. With competitive pricing and space-saving features, the QSW-M7308R-4X enables businesses to quickly upgrade to an ultra-high-speed backbone network infrastructure for building ultra-high-speed network transmission and storage solutions. The QSW-M7308R-4X is made in Taiwan (MIT), providing a high-quality and reliable networking solution. 100GbE/25GbE Network Includes four 100GbE QSFP28 and eight 25GbE SFP28 fiber ports to offer a backbone switching capacity of 1200Gbps for uplinking server rooms. User-friendly management interface The user-friendly QNAP Switch System (QSS) centralizes and simplifies central network management with an overview dashboard, port management, and settings guide. Layer 2 network Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for efficiently controlling network bandwidth and enhancing security. Space-saving half-width design One of the few compact 100GbE switches on market, the QSW-M7308R-4X, can be installed in a 1U rack space with another half-width rackmount switch for efficient physical space utilization. Compatible with QNAP NAS Supports FEC (Forward Error Correction) and IEEE-802.3ap Auto-Negotiation for high compatibility to connect to QNAP 25GbE NAS or NAS installing 100G network cards for high-performance, low-latency computing. Online firmware update QSS can be updated with just one click, helping IT staff ensure their network security. Embrace the ultra-high-speed 100GbE network generation! According to market research, the demand for 100GbE switches has taken off in 2023. Enterprises, hyperscalers, and service providers worldwide continue to invest in higher-speed network infrastructure to support higher-speed servers and higher bandwidth demands of new applications such as Generative AI workloads. With the prevailing 10GbE and 25GbE networks, explosive growth of big data transmission and high-density workloads is driving demands for ultra-high-speed 100GbE networks. The QSW-M7308R-4X 100GbE switch assists enterprises in deploying 100GbE networks in the existing network infrastructure with cost-effectiveness, resolving performance bottlenecks.
The best 100GbE network switch for SMBs | Cost-optimal The QSW-M7308R-4X offers 1200Gbps switching capacity at a budget-friendly price. Businesses can flexibly deploy medium-to-large scale high-speed network infrastructure using the QSW-M7308R-4X coupled with QNAP 25GbE/10GbE switches. Compact Two half-width rackmount QSW-M7308R-4X can be installed in a 1U rack space, or with another half-width rackmount switch. Best for QNAP NAS Ultra-high-speed 100GbE switches can connect to QNAP 25GbE NAS or NAS installing 100G network cards fulfilling high bandwidth demands for high-density I/O data transmission. |
| Network (RJ-45): | Yes |
| Port/Expansion Slot Details: | 4 x 100 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details: | 8 x 25 Gigabit Ethernet Expansion Slot |
| Media Type Supported: | Optical Fiber |
| Ethernet Technology: | 25 Gigabit Ethernet |
| Ethernet Technology: | 100 Gigabit Ethernet |
| Network Technology: | 25GBase-X |
| Network Technology: | 100GBase-X |
| Total Number of Expansion Slots: | 12 |
| Expansion Slot Type: | QSFP28 |
| Expansion Slot Type: | SFP28 |
| Layer Supported: | 2 |
| Networking Standards: | IEEE 802.1ab |
| Networking Standards: | IEEE 802.1p |
| Networking Standards: | IEEE 802.1Q |
| Networking Standards: | IEEE 802.1w |
| Networking Standards: | IEEE 802.3 |
| Networking Standards: | IEEE 802.3ab |
| Networking Standards: | IEEE 802.3ad |
| Networking Standards: | IEEE 802.3ae |
| Networking Standards: | IEEE 802.3by |
| Networking Standards: | IEEE 802.3u |
| Networking Standards: | IEEE 802.3x |
| Networking Standards: | IEEE 802.3z |
| Manageable: | Yes |
| Input Voltage: | 120 V AC |
| Input Voltage: | 230 V AC |
| Frequency: | 50 Hz |
| Frequency: | 60 Hz |
| Power Source: | Power Supply |
| Power Source: | AC |
| Height: | 1.7" |
| Power Consumption: | 100 W |
| Compatible Rack Unit: | 1U |
| Form Factor: | Rack-mountable |
| Form Factor: | Compact |
| Width: | 8.1" |
| Depth: | 9.8" |
| Weight (Approximate): | 3.92 lb |
| Package Contents: |
|
| Application/Usage: | Network |
| Application/Usage: | Business |
| Application/Usage: | Enterprise |
| Application/Usage: | Industrial |
| Application/Usage: | NAS |
| Application/Usage: | Server |
| Application/Usage: | Infrastructure |
| Application/Usage: | Building |
| Application/Usage: | Security |
| Application/Usage: | Data Storage |
| Application/Usage: | Traffic |
| Country of Origin: | Taiwan |
| Limited Warranty: | 2 Year |
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
Special Order Item
This item ships directly from the manufacturer and is not stocked in our warehouse. If stock is available at the manufacturer, the item will ship directly to you, usually within 7 - 15 business days.
Once the order has been sent to the manufacturer it can no longer be canceled.
If payment is made via credit card it will be charged before the order is sent to the manufacturer.
You must contact the manufacturer directly regarding returns and defective items.
We will contact you by email if the item is sold out or backordered (and we were unable to update the site before you placed the order) or if the item will be delayed longer than expected.
We have no control over the speed of the manufacturer's order processing, or whether they will honor your request to ship the item by any particular method.
- UPC: 885022026647
- Mfr's Part #: QSW-M7308R-4X-US
