Black Box KVM LCD Console Tray 17" Single-Rail Touchpad LED Backlight USB HDMI DisplayPort VGA
- Item #:
- Category:
- Availability:
- Packaging:
- Platform:
- Condition:
- Brand:
- B-1048231
- Switches DC
- Special Order
- Retail Packaging
- N/A
- New
- Black Box Innovations
Click to enlarge
(0 Ratings)

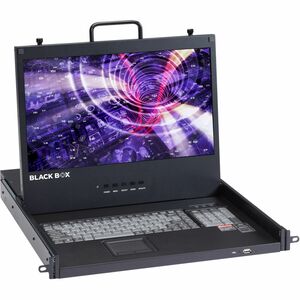

Need to control multiple servers in your equipment rack or network? The Black Box LCD Console Drawer is up to the task! The rack console drawer combines a 17.3" LED-backlit display, keyboard, and touchpad in only 1U of valuable rack space. With built-in USB, HDMI, DisplayPort, and VGA interfaces, it can support a variety of KVM switches for multiple server management. The rack console drawer also provides an extra local console for extended local operations. It's perfect for administering servers in data centers, server rooms, and labs. State-of-the-Art LCD Panel The rack console drawer features a power-saving LED backlit 17.3-inch LCD panel. Flexible Interface This flexible unit supports USB, VGA, DisplayPort, and HDMI connections to choose your video interface. And a front USB Hub supports USB HID (KB/MS) and storage devices. High-Resolution With a video resolution of up to 1920 x 1080 at 60 Hz, 1080p, you experience crisp, clear, viewing. Embedded Power Supply Fuels the Unit The drawer features a 12 V, 5.42-A integrated power supply. Adjusts to Fit Your Cabinet or Rack The drawer uses its adjustable mounting bracket to fit racks/cabinets 20.5 to 35.8 inches (52 to 91 cm) deep. |
| KVM Switch: | Yes |
| Device Type: | LCD Rack Console |
| Screen Size: | 17.3" |
| Display Screen Type: | LCD |
| Screen Mode: | Full HD |
| Screen Resolution: | 1920 x 1080 |
| Aspect Ratio: | 16:9 |
| Keyboard: | Yes |
| Pointing Device Type: | Mouse |
| Pointing Device Type: | TouchPad |
| USB: | Yes |
| HDMI: | Yes |
| VGA: | Yes |
| DisplayPort: | Yes |
| Number of USB Ports: | 3 |
| Number of HDMI Ports: | 2 |
| Number of VGA Ports: | 2 |
| Input Voltage: | 120 V AC |
| Input Voltage: | 230 V AC |
| Input Voltage Range: | 100 VAC to 240 VAC |
| Frequency: | 50 Hz |
| Frequency: | 60 Hz |
| Rack Height: | 1U |
| Height: | 1.7" |
| Width: | 1.7" |
| Depth: | 20.7" |
| Weight (Approximate): | 23.39 lb |
| Minimum Operating Temperature: | 32°F (0°C) |
| Maximum Operating Temperature: | 104°F (40°C) |
| Platform Supported: | PC |
| Platform Supported: | Linux |
| Platform Supported: | Sun |
| Limited Warranty: | 2 Year |
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
Special Order Item
This item ships directly from the manufacturer and is not stocked in our warehouse. If stock is available at the manufacturer, the item will ship directly to you, usually within 7 - 15 business days.
Once the order has been sent to the manufacturer it can no longer be canceled.
If payment is made via credit card it will be charged before the order is sent to the manufacturer.
You must contact the manufacturer directly regarding returns and defective items.
We will contact you by email if the item is sold out or backordered (and we were unable to update the site before you placed the order) or if the item will be delayed longer than expected.
We have no control over the speed of the manufacturer's order processing, or whether they will honor your request to ship the item by any particular method.
- UPC: 822088287186
- Mfr's Part #: KVT617A
