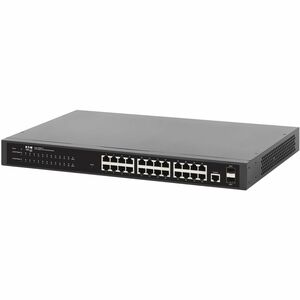

Tripp Lite series NGS24C2-1 Ethernet Switch
- Item #:
- Category:
- Availability:
- Packaging:
- Platform:
- Condition:
- Brand:
- B-1048546
- Switches DC
- Item is in stock
- Retail Packaging
- N/A
- New
- Eaton
Click to enlarge
(0 Ratings)
Enterprise Managed Gigabit Ethernet Switch Connects Your Network Devices to a LAN This space-saving desktop switch transmits data over a Gigabit Ethernet (GbE) network. Twenty-four auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a/8 cable only to the computers, routers, hubs and other devices designated to receive it, which improves the efficiency and potential throughput of the network. LEDs indicate when the switch is powered on and which Ethernet ports are connected and showing activity. Recommended for IT Managers in Server Message Block (SMB) and Enterprise Network Installs The NGS24C2-1 is ideal for IT pros needing a high-performance managed network switch for white space installations. It is also recommended for data centers using Layer 2 and Layer 3 management of connected servers, as well as small installations that manage multiple products within their network closets. Built-In Web Smart Management Software The Web Smart software provides rich Layer 2 functionality for monitoring and controlling connected equipment via a simple web interface. VLAN, trunking, VPN, port monitoring and other features improve network efficiency and performance. Dual Dedicated SFP Ports Two GbE SFP ports connect to user-supplied SFP modules (sold separately) for uplinking data to other switches via optical fiber or copper. LEDs indicate interface traffic. Compliant with Energy Efficient Ethernet Standards The NGS24C2-1 automatically shifts unused ports to a low power state without interrupting its network connection. The switch meets IEEE 802.3, 802.3ab, 802.3ad, 802.3i, 802.3u, 802.3x, 802.1d, 802.1q and 802.1w standards. Works with the Most Popular Web Browsers The NGS24C2-1 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGS24C2-1 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only). Versatile Installation Options The heavy-duty metal housing can be positioned on a level surface using the included rubber feet to minimize external vibration or mounted into 1U of an EIA-standard 19-inch rack using the included brackets and screws. The detachable C14 to C13 power cord connects to a protected UPS, generator or mains input AC source. |
| Features: | Built-in Fan |
| Features: | VLAN Segmentation |
| Features: | Remote Monitoring (RMON) |
| Features: | Broadcast Storm Control |
| Features: | DHCP Snooping |
| Features: | Energy Efficient |
| Total Number of Network Ports: | 24 |
| Uplink Port: | Yes |
| Network (RJ-45): | Yes |
| Port/Expansion Slot Details: | 24 x Gigabit Ethernet Network |
| Port/Expansion Slot Details: | 2 x Gigabit Ethernet Expansion Slot |
| Media Type Supported: | Twisted Pair |
| Media Type Supported: | Optical Fiber |
| Ethernet Technology: | Gigabit Ethernet |
| Network Technology: | 1000Base-SX |
| Network Technology: | 1000Base-LX |
| Network Technology: | 10/100/1000Base-T |
| Maximum Data Transfer Rate: | 128 MB/s |
| Total Number of Expansion Slots: | 2 |
| Expansion Slot Type: | SFP |
| Number of SFP Slots: | 2 |
| Layer Supported: | 3 |
| Networking Standards: | IEEE 802.1p |
| Networking Standards: | IEEE 802.1Q |
| Networking Standards: | IEEE 802.3ab |
| Networking Standards: | IEEE 802.3i |
| Networking Standards: | IEEE 802.3u |
| Networking Standards: | IEEE 802.3x |
| Networking Standards: | IEEE 802.3z |
| Networking Standards: | IEEE 802.3 |
| Manageable: | Yes |
| Input Voltage: | 120 V AC |
| Input Voltage: | 230 V AC |
| Power Source: | Power Supply |
| Power Consumption: | 16.70 W |
| Plug/Connector Type: | C14 |
| Product Material: | Metal |
| Compatible Rack Unit: | 1U |
| Form Factor: | Rack-mountable |
| Form Factor: | Desktop |
| Height: | 1.7" |
| Width: | 8.2" |
| Depth: | 17.3" |
| Weight (Approximate): | 4.18 lb |
| Package Contents: |
|
| Application/Usage: | Network |
| Application/Usage: | Data Center |
| Application/Usage: | Server |
| Application/Usage: | Router |
| Application/Usage: | PC |
| Certifications & Standards: |
|
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty: | 3 Year |
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
- UPC: 037332290922
- Mfr's Part #: NGS24C2-1
