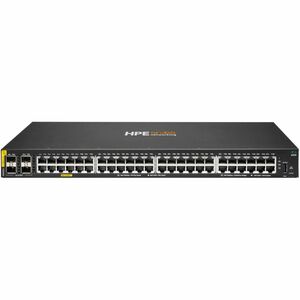

Aruba CX 6000 48G Class4 PoE 4SFP 370W Switch R8N85AACF
- Item #:
- Category:
- Availability:
- Packaging:
- Platform:
- Condition:
- Brand:
Aruba CX 6000 Switch Series Aruba CX 6000 Switch Series The Aruba CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Optimized for reliable, simple and secure access, the CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications. The CX 6000 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This fully managed series has convenient built-in uplinks with up to 370W of PoE+ to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces. The CX 6000 series is easy to deploy and use with flexible management choices that include Web GUI, CLI, cloudbased and onpremise Aruba Central management, so you can choose the best fit for your business and network environment. Delivering Layer 2 capabilities with enhanced access security, traffic prioritization, and IPv6 support, the CX 6000 also simplifies ownership and brings peace of mind with no switch software licensing and a Limited Lifetime Warranty. |
| Features: | Zero-Touch Provisioning (ZTP) |
| Features: | Fanless |
| Features: | Energy Efficient |
| Features: | DHCP Snooping |
| Total Number of Network Ports: | 48 |
| Uplink Port: | Yes |
| Modular: | Yes |
| Stack Port: | Yes |
| Port/Expansion Slot Details: | 48 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details: | 4 x 10 Gigabit Ethernet Network |
| Media Type Supported: | Twisted Pair |
| Media Type Supported: | Optical Fiber |
| Ethernet Technology: | Gigabit Ethernet |
| Ethernet Technology: | 10 Gigabit Ethernet |
| Network Technology: | 10/100/1000Base-T |
| Network Technology: | 10GBase-X |
| Total Number of Expansion Slots: | 4 |
| Expansion Slot Type: | SFP |
| Number of SFP Slots: | 4 |
| Layer Supported: | 3 |
| Networking Standards: | IEEE 802.3 |
| Networking Standards: | IEEE 802.3at |
| Networking Standards: | IEEE 802.3az |
| Networking Standards: | IEEE 802.3ad |
| Networking Standards: | IEEE 802.1s |
| Networking Standards: | IEEE 802.1D |
| Networking Standards: | IEEE 802.1w |
| Networking Standards: | IEEE 802.1p |
| Networking Standards: | IEEE 802.1ab |
| Networking Standards: | IEEE 802.1Q |
| Networking Standards: | IEEE 802.1x |
| Networking Standards: | IEEE 802.3af |
| Networking Standards: | IEEE 802.3x |
| Networking Standards: | IEEE 802.3ab |
| PoE (RJ-45) Port: | Yes |
| PoE Budget: | 370 W |
| Input Voltage: | 120 V AC |
| Input Voltage: | 230 V AC |
| Frequency: | 50 Hz |
| Frequency: | 60 Hz |
| Power Source: | Power Supply |
| Power Source: | AC |
| Power Source: | PoE+ |
| Power Consumption: | 480 W |
| Compatible Rack Unit: | 1U |
| Form Factor: | Surface Mount |
| Form Factor: | Wall Mountable |
| Form Factor: | Rack-mountable |
| Form Factor: | Cabinet Mount |
| Form Factor: | Compact |
| Height: | 1.7" |
| Width: | 17.4" |
| Depth: | 12" |
| Weight (Approximate): | 11.07 lb |
| Package Contents: | - 6000 48G Class4 PoE 4SFP 370W Switch
- Non-Pluggable, Internal PSU behind sheetmetal Chassis Frame
- Non-Pluggable, Internal Fans behind sheetmetal Chassis Frame
- Mounting Brackets
|
| Application/Usage: | Mobile Device |
| Application/Usage: | IoT Devices |
| Application/Usage: | Security |
| Application/Usage: | Network |
| Application/Usage: | Campus |
| Application/Usage: | Data Center |
| Application/Usage: | Enterprise |
| Application/Usage: | Branch Office |
| Application/Usage: | Business |
| Application/Usage: | Security Camera |
| Application/Usage: | Wireless Access Point |
| Application/Usage: | Server |
| Application/Usage: | Router |
| Application/Usage: | IP Phone |
| Application/Usage: | Tunnel |
| Application/Usage: | Power |
| Application/Usage: | Industrial |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance: | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Limited Warranty: | Lifetime |
Shipping Restrictions
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
- UPC:
190017560021
- Mfr's Part #:
R8N85A#ACF
