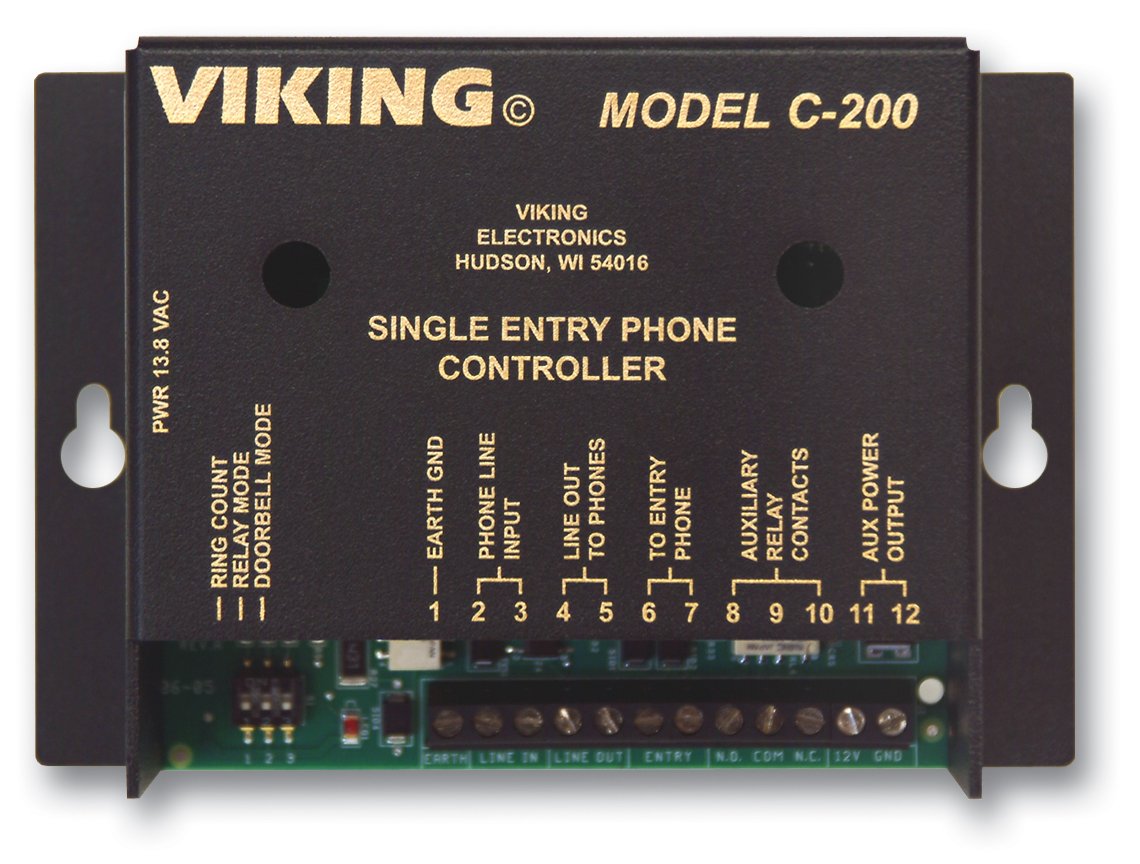

Door Entry Control for 1 Entry Phone Provides C.O. Sharing Call Waiting and One Auxiliary Contact

The C-200 allows a single line phone or phone system to share a phone line with an entry phone. Tenants may answer an entry phone call and converse with the visitor. The C-200 provides a Call Waiting tone when the phone line is in use. Tenants may call out to the entry phone for monitoring purposes. Auxiliary contacts are provided to operate a doorbell or activate a camera lights etc. If additional features (such as doorstrike multiple entry phone with caller ID and keyless entry) are needed use the Viking model C-2000A. Applications Add an entry phone to your standard home or office phones to provide door communication Provide commercial or residential security via two-way handsfree communication at the door and gate Connects in series with a single phone line or to a phone system s unused line input (loop start trunk input) Features Allows an entry phone to share a single telephone line with a residential or business telephone system House phones ring with C.O. line cadence or distinctive ring when the entry phone Call button is pressed Compatible with these Viking entry phones: - E-10 E-20A E-30 E-40 Handsfree Phones - K-1500-7 Stainless Steel Panel Phone - Or use with any analog touch tone phone Provide entry phone activated chimes and whole house paging when used with Viking model SLP-1 Produces double Call Waiting tones One set of normally open and normally closed contacts available for operating a doorbell camera lights etc. Add door strike capability with the Viking model RC-2A Remote Touch Tone Controller Specifications Power: 120VAC / 13.8VAC 1.25A UL listed adapter provided Dimensions: 133mm x 104mm x 44mm (5.25in. x 4.1in. x 1.75in. ) Shipping weight: 0.9kg (2 lbs.) Environmental: 0 C to 32 C (32 F to 90 F) with 5% to 95% non-condensing humidity Contacts: .5A @ 125V AC 1A @ 30V DC Ring Output: 5 REN capable of ringing (10) 0.5 REN phones Talk Battery: 32V DC Connections: (10) cage clamp screw terminals

• This item is not available for Budget Shipping or free shipping promotions.

• UPC: 615687222968
• Mfr's Part #: C-200
