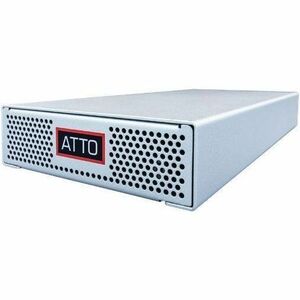

ATTO ThunderLink TLNS-5102-D00 100Gigabit Ethernet Adapter TLNS5102D00
- Item #:
- Category:
- Availability:
- Packaging:
- Platform:
- Condition:
- Brand:
ATTO Thunderlink® Thunderbolt™ 5 to 100GbE adapters provide maximum throughput for high bandwidth network connectivity for demanding IT and media & entertainment applications Technical Features - 5th generation Thunderbolt 80Gb/s
- Dual Thunderbolt 5 USB-C connectors
- Supports 8K video file transfer and display simultaneously with dual Thunderbolt 5 (80Gb/s)
- ATTO360™ Networking Software Support
- Daisy chain up to five additional Thunder-bolt technology enabled devices
- Backwards compatible with previous generation USB-C Thunderbolt enabled hosts and devices
- Driver support for macOS®, Windows®, and Linux® operating systems
- Advanced Data Streaming (ADS™) Tech-nology
- Minimized interrupts for low latency
- End-to-end Quality of Service and congestion control
- Models support QSFP28 & QSFP+, (SFP28/SFP+/RJ45 via QSA adapters)
- TCP/UDP/IP hardware based stateless offloads
- Advanced HW offloads including LRO, LSO, TSO, RSS, and TSS
- Support for downstream USB 2/3/4 devices for more coverage
- Receive Side Scaling (RSS)
- Transmit Side Scaling (TSS)
- PCI Hot Plug/Active Peripheral interconnect
Industry Proven Technology ATTO has over 30 years of experience developing first-to-market high performance and reliable storage connectivity solutions for customers. ATTO ThunderLink 5 Ethernet adapters now provide creative professionals using Thunderbolt enabled hosts, cost effective access to storage not previously available using USB. The integrated family of ThunderLink adapters boasts an extensive list of customer design wins and certifications with respected industry partners. Now, the combination of ATTO and 100GbE is being integrated with the latest in cutting edge high performance Thunderbolt 5 connectivity. ATTO360™ Networking ATTO simplifies the optimization and configuration of our world class ThunderLink devices via our ATTO360™ management utility. This software offers easy-to-use tuning profiles for performance and efficiency including partner specific storage profiles that get the most out of your storage. This application also includes ATTOview™ monitoring that analyzes thousand of metrics in both real-time and point in time via time series database and ATTO Expert™ that gives instant advice on how to solve bottlenecks and eliminate downtime. |
| Features: | LED Indicator |
| Features: | Single Root I/O Virtualization (SR-IOV) |
| Features: | Extended Message-Signaled Interrupts (MSI-X) |
| Features: | Plug and Play |
| Features: | VLAN Support |
| Features: | Network Virtualization using Generic Routing Encapsulation (NVGRE) |
| Features: | Virtual Extensible LAN (VXLAN) |
| Features: | RDMA over Converged Ethernet (RoCE) |
| Features: | RDMA over Converged Ethernet (RoCE) v2 |
| Host Interface: | Thunderbolt 5 |
| Total Number of Expansion Slots: | 2 |
| Expansion Slot Type: | QSFP28 |
| Media Type Supported: | Optical Fiber |
| Maximum Operating Distance: | 328.08 ft |
| Maximum Data Transfer Rate: | 100 Gbit/s |
| Minimum Operating Humidity (Non-condensing): | 90% |
| Maximum Operating Humidity (Non-condensing): | 10% |
| Form Factor: | Desktop |
| Height: | 1.4" |
| Width: | 4.1" |
| Depth: | 9.5" |
| Application/Usage: | Network |
| Operating System Compatibility: | Mac OS |
| Operating System Compatibility: | Windows |
| Operating System Compatibility: | Linux |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) |
| Country of Origin: | United States |
| TAA Compliant: | Yes |
Shipping Restrictions
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
- Mfr's Part #:
TLNS-5102-D00
