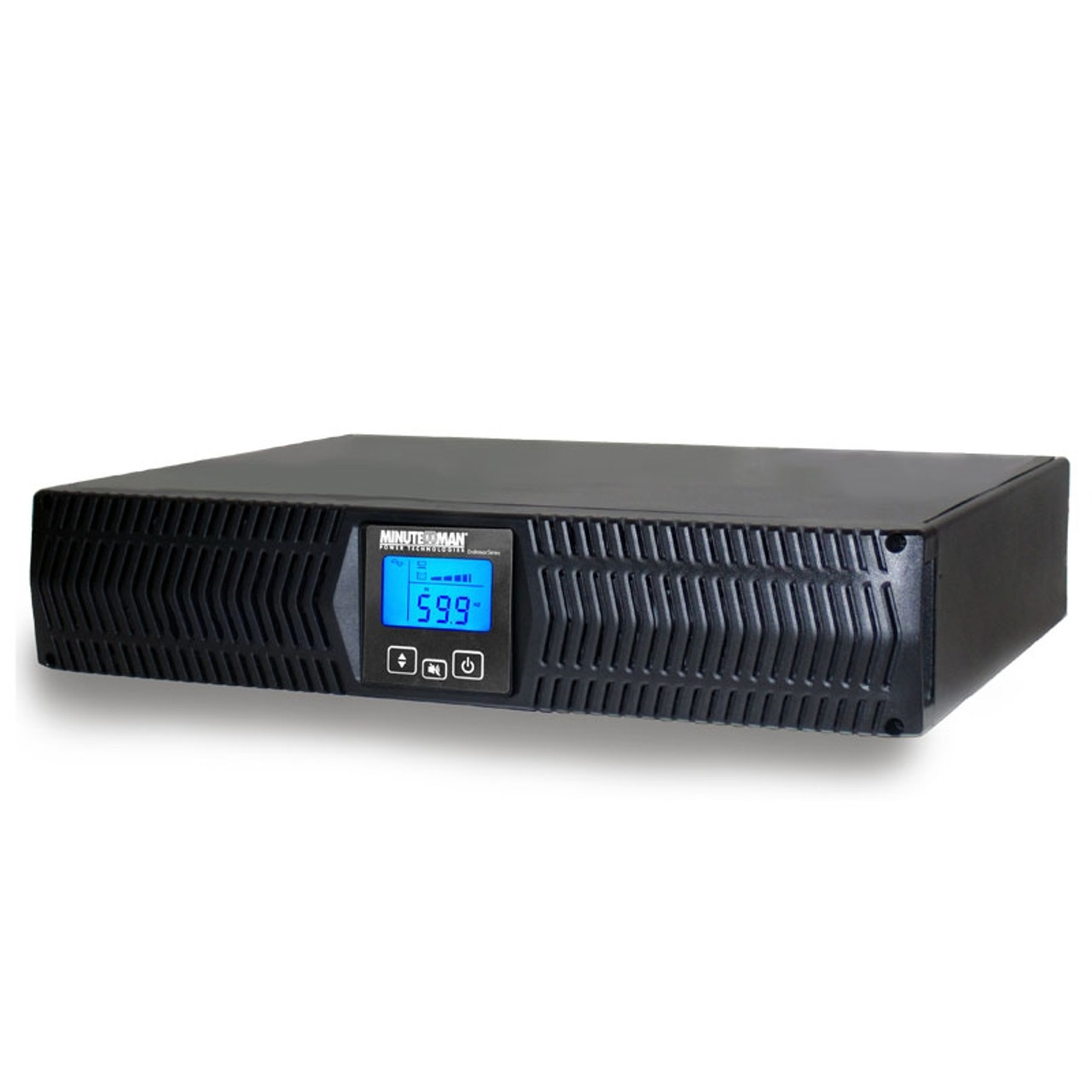

Minuteman Encompass RTXL EC3000RTXL2U 3000VA Rack/Tower/Compact UPS
- Item #:
- Category:
- Availability:
- Packaging:
- Platform:
- Condition:
- Brand:
- B-1054210
- Computer/Laptop Accessories DC
- Item is in stock
- Retail Packaging
- N/A
- New
- Minuteman Power Technologies
Click to enlarge
Product Rating
(0 Ratings)
General Information
On-Line UPS, Comprehensive Protection
|
Technical Information
| Plug/Connector Type: | NEMA L5-30P |
| Receptacle Type: | NEMA L5-30R |
| Receptacle Type: | NEMA 5-15/20R |
| Receptacle Detail: | 1 x NEMA L5-30R |
| Receptacle Detail: | 6 x NEMA 5-15/20R |
| Cord Length: | 10 ft |
| Application/Usage: | Medical |
| Application/Usage: | Network |
| Application/Usage: | Server |
| Application/Usage: | VoIP Phone System |
| Application/Usage: | IP Phone |
| Application/Usage: | Security |
| Application/Usage: | Edge Computing |
| Application/Usage: | Government |
| Application/Usage: | Security System |
| Application/Usage: | Audio/Video Equipment |
| Application/Usage: | Equipment |
| Application/Usage: | Hospital |
| Features: | Cold Start Function |
| Features: | Built-in Bypass Switch |
Power Description
| Load Capacity (VA): | 3000 VA |
| Load Capacity (Watt): | 2700 W |
| Input Voltage: | 120 V AC |
| Input Voltage Range: | 0 V AC - 160 V AC |
| Output Voltage: | 120 V AC |
| Output Voltage: | 110 V AC |
| Output Voltage: | 127 V AC |
| Input Frequency: | 60 Hz |
| Input Frequency: | 50 Hz |
| Output Frequency: | 50 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | True Sine Wave |
| Circuit Breaker: | Yes |
| Output Power Factor: | 0.9 |
Display & Graphics
| Display: | LCD |
Management
| Network Management: | RS-232 |
| Network Management: | SNMP |
Interfaces/Ports
| Serial Port: | Yes |
| USB: | Yes |
| EPO Port: | Yes |
Battery Information
| Battery Characteristics: | Sealed, Non-spillable, Maintenance-free, Valve-regulated |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 2 Minute |
| Backup/Run Time (Half Load): | 10 Minute |
| Hot Swappable: | Yes |
| Replaceable Battery: | Yes |
Environmental Conditions
| Minimum Operating Temperature: | 32°F (0°C) |
| Maximum Operating Temperature: | 104°F (40°C) |
| Maximum Operating Elevation: | 9842.52 ft |
Physical Characteristics
| Height: | 3.5" |
| Width: | 18.9" |
| Length: | 23.7" |
| Rack Height: | 2U |
| Form Factor: | Rack/Tower/Compact |
| Weight (Approximate): | 65.70 lb |
| Energy Star: | Yes |
| TAA Compliant: | Yes |
Miscellaneous
| Certifications & Standards: |
|
| Energy Efficiency Certification: | ENERGY STAR 2.0 |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) 2 |
Warranty
| Limited Warranty: | 3 Year |
| Additional Warranty Information: | Full 3-year warranty which includes batteries. |
| Directly Connected Equipment Guarantee: | $200000 |
Be the first to review this product. Write a Review
Shipping Restrictions
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
- UPC: 784755157362
- Mfr's Part #: EC3000RTXL2U
