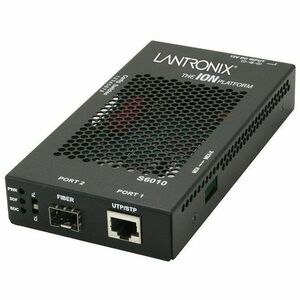

Lantronix S6010-1040 Transceiver/Media Converter
- Item #:
- Category:
- Availability:
- Packaging:
- Platform:
- Condition:
- Brand:
Stand-alone DS1 - T1/E1 Remotely Managed NID DS1 - T1/E1 over Fiber The ION S6010 is a stand-alone managed media converter that offers a solution for extending DS1 - T1/E1 or PRI connections over fiber optic cabling. It provides fiber extension though a twisted pair RJ-48 port and a fiber port. These DS1 - T1/E1 converters must be used in pairs, one on each end of the fiber link. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6010 is linked to a C6010 card installed in a managed ION Chassis. These DS1 - T1/E1 converters are available with fixed fiber connectors or an open SFP slot, with support for various fiber types, distances, and wavelengths to provide maximum flexibility for any network topology. CWDM SFPs can also be used to further increase the bandwidth capacity of the fiber infrastructure. |
| Total Number of Ports: | 1 |
| Number of RJ-48 Ports: | 1 |
| Media Type Supported: | Optical Fiber |
| Media Type Supported: | Twisted Pair |
| Maximum Distance Supported: | 1.50 km |
| Total Number of Expansion Slots: | 1 |
| Expansion Slot Type: | SFP |
| Number of SFP Slots: | 1 |
| Carrier Supported: | T-carrier/E-carrier |
| Network Technology: | T1/E1 |
| Power Source: | AC Adapter |
| Input Voltage: | 120 V AC |
| Input Voltage: | 230 V AC |
| Power Consumption: | 2.60 W |
| Form Factor: | Wall Mountable |
| Form Factor: | DIN Rail Mountable |
| Form Factor: | Rack-mountable |
| Form Factor: | Standalone |
| Form Factor: | Shelf Mount |
| Height: | 1" |
| Width: | 3.3" |
| Depth: | 6.5" |
| Weight (Approximate): | 2 lb |
| Package Contents: | S6010-1040 Transceiver/Media ConverterPower Supply - South Africa |
| Application/Usage: | Data |
| Application/Usage: | Network |
| Additional Information: | Twisted Pair (RJ-48) [1.5 km/0.9 mi.] to *SFP slot (empty) |
| Certifications & Standards: | EN55035/55032 Class A, FCC Class A, CE, UKCA, UL |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance: | Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant: | Yes |
| NDAA Compliant: | Yes |
| Limited Warranty: | Lifetime |
Shipping Restrictions
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
- UPC:
783384247239
- Mfr's Part #:
S6010-1040-SA
