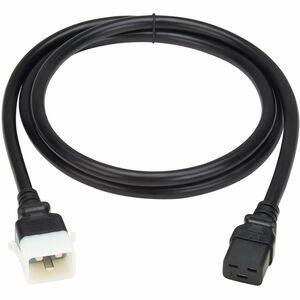

Tripp Lite series P036-E06-6 Standard Power Cord P036E066
- Item #:
- Category:
- Availability:
- Packaging:
- Platform:
- Condition:
- Brand:
C20-to-C19 Power Cables for Network Devices That Require a Heavy-Gauge Connection These power extension cords feature 12 AWG wire suitable for high power connections, making them a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. The P036-E06-6 can be used to connect servers, routers, network switches or blade server enclosures to a UPS system or PDU. The six-foot (1.8-meter) length helps reduce cable clutter by providing a tailor-made fit between the device and the PDU in a crowded rack enclosure. Six PDU power cables are included, an ideal pack for large-scale equipment rollouts. Forms a Special Locking Connection with a P-Lock Outlet The P-Lock C20 connector forms a secure connection with a PDU with a P-Lock outlet, including Eaton G4 and newer PDUs with C39 outlets. The P-Lock connection helps reduce costly downtime caused by accidental cable disconnections in a crowded rack or PDU space. The P036-E06-6 lets you replace non-locking C19/C20 cables or upgrade an entire PDU application by pairing with an Eaton PDU or other PDU with P-Lock outlets. |
| First End Connector Type: | IEC 60320 C20 |
| First End Connector Detail: | 3-Pin IEC 60320 C20 Male |
| Second End Connector Type: | IEC 60320 C19 |
| Second End Connector Detail: | 3-Pin IEC 60320 C19 Female |
| Device Supported: | Blade Server |
| Device Supported: | Network Switch |
| Device Supported: | Server |
| Device Supported: | Router |
| Device Supported: | Network Device |
| Device Supported: | UPS |
| Device Supported: | PDU |
| Device Supported: | Computer |
| Device Supported: | Monitor |
| Device Supported: | HDTV |
| Device Supported: | Printer |
| Device Supported: | Tablet |
| Localization: | North America |
| Gauge: | 12 |
| Number of Conductors: | 3 |
| Features: | Heavy Duty |
| Features: | P-Lock |
| Voltage Rating: | 250 V AC |
| Current Rating: | 20 A |
| Color Family: | Black |
| Product Color: | Black |
| Jacket Material: | Polyvinyl Chloride (PVC) |
| Height: | 11" |
| Width: | 7" |
| Depth: | 0.5" |
| Cord Length: | 6 ft |
| Minimum Operating Temperature: | 23°F (-5°C) |
| Maximum Operating Temperature: | 158°F (70°C) |
| Minimum Storage Temperature: | 14°F (-10°C) |
| Maximum Storage Temperature: | 140°F (60°C) |
| Certifications & Standards: | |
| Limited Warranty: | Lifetime |
Shipping Restrictions
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
- UPC:
037332292667
- Mfr's Part #:
P036-E06-6
