Eaton Tripp Lite Series HDMI Fiber Extender Terminations for MPO Fiber Optic Cable 4K 60 Hz 18 Gbps LSZH Up to 328 ft. 100 m P568000FBR

Extends 4K Video Transmissions up to 328 ft.

This HDMI-to-MPO termination kit is recommended for data centers, medical imaging, stereoscopic 3D photography, military surveillance, security systems and other audio/video applications in which the source and display are placed far apart. Connect an included extender to both the HDMI source and display, and use the included adapters to connect the extenders to an MPO cable.

Transmits 4K Video with HDR and 4:4:4 Color

The P568-000-FBR supports Ultra HD 4K resolutions up to 3840 x 2160 at 60 Hz with bandwidths up to 18 Gbps. It supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.3 encryption allows you to stream 4K content with no loss in resolution. This termination kit also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Easy to Pair with Eaton Tripp Lite Series Fiber Cabling

The P568-000-FBR is compatible with N844A-Series multimode OM3 MPO fiber cables, including N844A-10M-8-P, N844A-15M-8-P, N844A-20M-8-P and N844A-30M-8-P (sold separately).

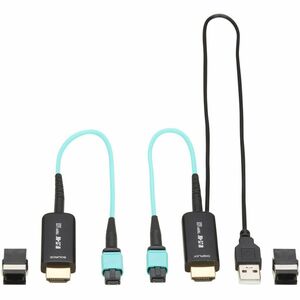

• P568-000-FBR HDMI Fiber Extender Termination Kit with male MPO connectors
• 2 x MPO adapters (M/F)
• Installation instructions

• HDCP Specification: 1.4; 2.3
• Max Supported Video Resolution: 3840 X 2160 60HZ (4K)
• Max Supported Color Depth: 36-bit Deep Color
• HDR Support: Yes
• 3D Video Supported: No
• Audio Specification: DOLBY TRUEHD/DTS-HD AUDIO
• Chroma Sub Sampling: 4:2:0; 4:2:2; 4:4:4
• Side A - Connector 1: HDMI (MALE)
• Side B - Connector 1: 12F MPO (MALE); USB A (MALE)
• Connector Style: Straight
• Power Provided to Connected Device(s): 5V
• Cable Jacket Rating: LSZH
• Cable Outer Diameter (OD): 3.0MM
• Cable Length (ft.): 0.66

• CE (Europe)
• FCC Part 15 Class B (USA)
• UKCA
