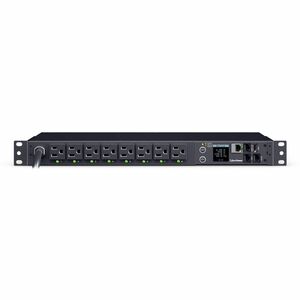

CyberPower PDU41021 Single Phase 100 120 VAC 15A Switched PDU

Item #:
Category:
Availability:
Packaging:
Platform:
Condition:
Brand:

Your Price: $579.72

Click to enlarge

Product Rating

(0 Ratings) Write a Review

Description
Reviews
Additional Info

General Information

The CyberPower PDU41021, a 1U rackmount, switched power distribution unit (PDU) provides 100-120Vac, 15A output via sixteen (16) NEMA 5-15R receptacles from a single NEMA 5-15P input power plug. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control Display.

Technical Information

PDU Type:	Switched
Phase:	Single Phase
Plug/Connector Type:	NEMA 5-15P
Receptacle Type:	NEMA 5-15R
Receptacle Detail:	16 x NEMA 5-15R
Protection Type:	Overload Protection
Locking Receptacles:	Cord Retention Tray
Features:	LCD Display
Features:	LED Status Indicator

Power Description

Output Voltage Range:	100 V AC - 120 V AC
Input Current:	15 A
Input Frequency:	60 Hz

Management

Management:	IPv4/v6 SNMPv1/v3 HTTP/HTTPs TCP/IP UDP DHCP NTP DNS SMTP SSH SSL TLS Telnet FTP Syslog RADIUS LDAP LDAPS Windows AD
Remote Outlet Switching:	Yes

Interfaces/Ports

Network (RJ-45):

Yes

Physical Characteristics

Color Family:	Black
Product Color:	Black
Mounting Orientation:	Horizontal
Mount Type:	Rack-mountable
Form Factor:	Horizontal
Form Factor:	Rack
Rack Height:	1U
Cord Length:	12 ft
Height:	1.8"
Width:	17.1"
Depth:	8.5"
Weight (Approximate):	8.40 lb

Environmental Conditions

Minimum Operating Temperature:	32°F (0°C)
Maximum Operating Temperature:	140°F (60°C)
Minimum Storage Temperature:	5°F (-15°C)
Maximum Storage Temperature:	149°F (65°C)
Application/Usage:	Data Center
Application/Usage:	Network Closet
Application/Usage:	VoIP Phone System
Certifications & Standards:	UL62368 FCC Class A
Environmental Compliance:	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty:

3 Year

Miscellaneous

Additional Information:

Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 21.46 (cm)

Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 8.45 (in)

Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 215 (mm)

Weight (kg) : 3.81

Weight (lb) : 8.4

Shipping Dimensions - (WxHxD) (cm) : 55.25 x 12.7 x 40.64 (cm)

Shipping - Dimensions (WxHxD, in) : 21.75 x 5 x 16 (in)

Shipping - Dimensions (WxHxD, mm) : 552.45 x 127.0 x 406.4 (mm)

Shipping - Weight (kg) : 5.53

Shipping - Weight (lb) : 12.2

Cord Length : 12 ft (3.7 m)

Derated Input Current : 12 A

Input Frequency Range : 50 Hz - 60 Hz

Input Plug Type : NEMA 5-15P

Maximum Input Current : 15A

Phase : Single Phase

Plug Style : Straight

Meter Readout : Power Control Display

Nominal Output Voltage : 100 - 120 VAC

Outlets - Front : 8

Outlets - # of Banks : 2

Outlets - Rear : 8

Outlets - Total : 16

Outlet Type COMPUTED : 16 - NEMA 5-15R

Overload Protection : 15A

Overload Protection (Each Bank) : None

USB Charge Port : No

Environmental Sensor : Optional, via RJ45

Hardware Connection Port : RJ45

LCD : Multifunction LCD

LED Indicators : Tx/Rx

Modular Expandability (Cascading) : Yes, via RJ45

Outlet switching : Yes

SNMP / HTTP Remote Monitoring : IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog, RADIUS, LDAP, LDAPS, Windows AD

Upgradeable firmware : Yes

Adjustable Mounting Brackets : 1 set

Color : Black

Cord Retention Tray/Cord Organizers : Yes

External Site Ground Pin : Yes

Form Factors Supported : 1U Rackmount

Material of Construction : Metal

Rack Height : 1U

Style : Horizontal Rackmount

Operating Elevation : 0 - 11483 ft (0 - 3500 m)

Operating Relative Humidity : 0 - 95 % (non-condensing)

Operating Temperature : 32 - 140 °F (0 - 60 °C)

Storage Elevation : 0 - 49213 ft (0 - 14999 m)

Storage Temperature : 5 - 149 °F (-15 - 65 °C)

Environmental : RoHS Compliant

Safety : UL62368

Extended Warranty Option : WEXT5YR-PDU1B

Product Warranty : 3 Year Limited Warranty

Be the first to review this product. Write a Review

Shipping Restrictions

This item cannot be shipped to PO Boxes.
This item can be shipped only within the U.S.

UPC: 649532937653
Mfr's Part #: PDU41021
