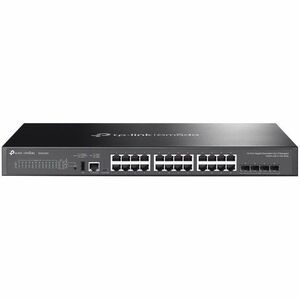

TP-Link Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4× 10G Slots
- Item #:
- Category:
- Availability:
- Packaging:
- Platform:
- Condition:
- Brand:
- B-1063100
- Switches DC
- Item is in stock
- Retail Packaging
- N/A
- New
- TP LINK
Click to enlarge
(0 Ratings)
What This Product Does Omada SG5428X is a dependable entry-level L3 switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 24× gigabit RJ45 ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5428X offers a reliable networking solution for SMEs, and ISPs. High-speed Connectivity and Powerful Stacking 24× gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance. Abundant Layer 3 Capabilities Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported. Highly Available ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments. Enhanced Security Functions Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell. Omada SDN Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP). The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management-all controlled from a single interface. Apart from the ability to be centrally managed via the web or the Omada app, SG5428X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events. |
| Features: | Fanless |
| Features: | DHCP Snooping |
| Features: | Zero-Touch Provisioning (ZTP) |
| High Availability Supported: | Yes |
| Total Number of Network Ports: | 24 |
| Uplink Port: | Yes |
| Modular: | Yes |
| Stack Port: | Yes |
| Network (RJ-45): | Yes |
| Port/Expansion Slot Details: | 24 x Gigabit Ethernet Network |
| Port/Expansion Slot Details: | 4 x 10 Gigabit Ethernet Expansion Slot |
| Media Type Supported: | Twisted Pair |
| Media Type Supported: | Optical Fiber |
| Ethernet Technology: | Gigabit Ethernet |
| Ethernet Technology: | 10 Gigabit Ethernet |
| Network Technology: | 10/100/1000Base-T |
| Network Technology: | 10GBase-X |
| Total Number of Expansion Slots: | 4 |
| Expansion Slot Type: | SFP+ |
| Number of SFP+ Slots: | 4 |
| Layer Supported: | 3 |
| Networking Standards: | IEEE 802.1ab |
| Networking Standards: | IEEE 802.3az |
| Networking Standards: | IEEE 802.1x |
| Networking Standards: | IEEE 802.1p |
| Networking Standards: | IEEE 802.3ah |
| Networking Standards: | IEEE 802.1Q |
| Manageable: | Yes |
| Input Voltage: | 120 V AC |
| Input Voltage: | 230 V AC |
| Frequency: | 50 Hz |
| Frequency: | 60 Hz |
| Power Source: | Power Supply |
| Power Consumption: | 19.60 W |
| Product Material: | Metal |
| Form Factor: | Rack-mountable |
| Form Factor: | Desktop |
| Height: | 1.7" |
| Width: | 17.3" |
| Depth: | 7.1" |
| Application/Usage: | Wireless Access Point |
| Application/Usage: | Network |
| Application/Usage: | Business |
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
- UPC: 810142823210
- Mfr's Part #: SG5428X
