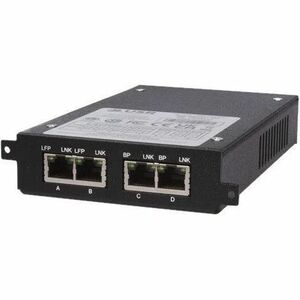

USRobotics Gigabit Ethernet Aggregation TAP USR4523

Item #:
Category:
Availability:
Packaging:
Platform:
Condition:
Brand:

Your Price: $705.76

Click to enlarge

Product Rating

(0 Ratings) Write a Review

Description
Reviews
Additional Info

General Information

Multi-purpose tap for aggregation, breakout, and span/regeneration.

The USR® Gigabit Ethernet Aggregation TAP eliminates SPAN port contention, oversubscription, and configuration errors with 3 different modes, simple installation, and reliable access to your gigabit ethernet segments.

In aggregation mode this TAP faultlessly combines and processes both the TX and RX streams of data into a single data stream. Improve visibility with two monitor ports sending identical copies of full-duplex data to separate network tools (analyzer, IDS, probe) for simultaneous monitoring and analyzing.

For dual-receive tools, breakout mode is available for individual TX and RX streams.

SPAN/Regenerate mode transmits 3 copies of incoming traffic for up to 3 tools. Ideal for security applications, including link failure propagation for HA designed networks, or anywhere you need non-intrusive dedicated access to your network links for advanced or consolidated monitoring.

USR4523 features | Monitoring and analysis

Aggregation mode allows monitoring full-duplex traffic, even with single interface monitoring tools
Breakout mode allows monitoring full-duplex traffic with RX and TX streams on separate monitoring ports
SPAN/Regeneration mode sends copies to multiple tools to provide access to the same links for system redundancy, testing and advanced monitoring applications
Improved visibility into the network - including VLAN tags
Ideal for Intrusion Detection System (IDS) applications

Aggregating data

Monitor all network traffic from two different sources
Improve network troubleshooting by viewing both sides of a full-duplex conversation
Combine both directions of a full-duplex data stream in a single trace file
Allows flexibility of monitoring devices, including the option to revert to traditional full-duplex dual channel data capture, utilizing single NIC probes for advanced monitoring or hardware reduction

Network stability

Fault-tolerant
Ideal for 24x7 permanent access - Deploy tools or utilize TAP ports immediately without network traffic interruptions or the need for maintenance windows
Eliminate SPAN port contention, oversubscription, and configuration errors
Improve overall switch performance by removing port mirror degradation while freeing valuable ports
Link Failure propagation for High Availability designed networks ensures instant switch to the secondary link to maintain 100% uptime

Technical Information

Device Function:

Network Tapping

Interfaces/Ports

Network (RJ-45):	Yes
Number of Network (RJ-45) Ports:	4

Media & Performance

Media Type Supported:

Twisted Pair

Network & Communication

Ethernet Technology:	Gigabit Ethernet
Ethernet Technology:	Fast Ethernet
Ethernet Technology:	Ethernet

Power Description

Input Voltage:	5 V DC
Input Voltage:	120 V AC
Input Voltage:	230 V AC
Input Current:	1.77 A

Physical Characteristics

Height:	6.6"
Width:	3.9"
Depth:	1.2"
Weight (Approximate):	11.20 oz

Miscellaneous

Package Contents:	Gigabit Ethernet Aggregation TAP - USR4523 1 x AC Power Supply with Clips for US, UK, EU, AU 2 x Mounting screws Information Card
Application/Usage:	Network
Application/Usage:	Security System
Certifications & Standards:	FCC (Part 15/Class A) CE UKCA Safety STD IEC 62368-1 CSA STD C22.2
Environmental Compliance:	Restriction of Hazardous Substances (RoHS) 3
Environmental Compliance:	Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty:

2 Year

Be the first to review this product. Write a Review

Shipping Restrictions

This item cannot be shipped to PO Boxes.
This item can be shipped only within the U.S.

Special Order Item

This item ships directly from the manufacturer and is not stocked in our warehouse. If stock is available at the manufacturer, the item will ship directly to you, usually within 7 - 15 business days.

Once the order has been sent to the manufacturer it can no longer be canceled.

If payment is made via credit card it will be charged before the order is sent to the manufacturer.

You must contact the manufacturer directly regarding returns and defective items.

We will contact you by email if the item is sold out or backordered (and we were unable to update the site before you placed the order) or if the item will be delayed longer than expected.

We have no control over the speed of the manufacturer's order processing, or whether they will honor your request to ship the item by any particular method.

UPC: 738168041855
Mfr's Part #: USR4523
