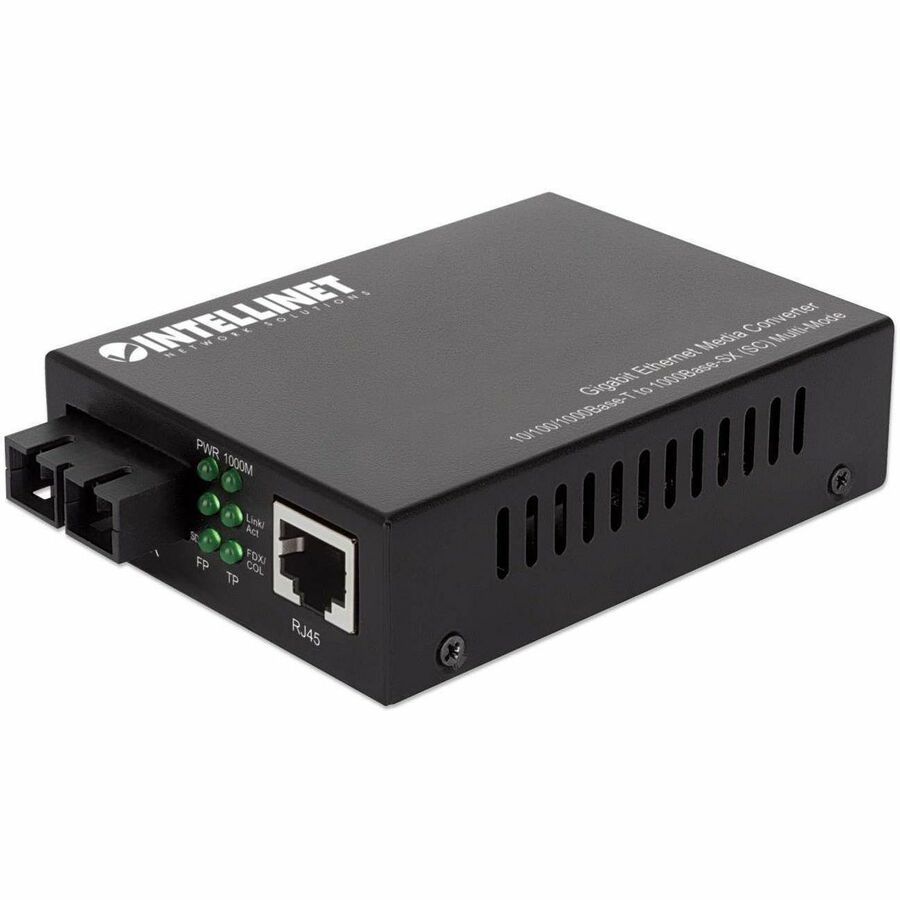

Intellinet Gigabit Ethernet Media Converter
- Item #:
- Category:
- Availability:
- Packaging:
- Platform:
- Condition:
- Brand:
- B-963912
- Networking DC
- Item is in stock
- Retail Packaging
- N/A
- New
- Intellinet
(0 Ratings)
Media Converter with Gigabit Ethernet - expand the size of an existing network The Intellinet Network Solutions Gigabit Ethernet Media Converter offers the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. It offers maximum flexibility with 10/100/1000Base-TX and auto-negotiation. Now, migration or expansion of existing networks can be achieved with minimum cost and complexity. More connectivity options The converter is completely transparent to the network, so the network performs exactly the way it did before, only now it can support both copper and fiber media. The Gigabit Ethernet Media Converter provides fiber connectivity to Ethernet segments, allowing for even greater networking expansion between extended workgroups. It also provides building-to-building connectivity without the cost and disruption associated with installing additional routers. Distance extension between networking devices Connecting the converter to fiber segments further extends distances between network nodes, offering increased spatial and distance options for networks where none existed before. Greater cabling flexibility Network managers can install fiber cabling anywhere within a network without changing the arrangement of their copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several Gigabit Ethernet Media Converters can be simultaneously installed into a 19" rackmountable chassis (available from Intellinet Network Solutions), providing much-needed flexibility for networks.
|
| Total Number of Ports: | 2 |
| Network (RJ-45): | Yes |
| Number of Network (RJ-45) Ports: | 1 |
| Number of SC Ports: | 1 |
| SC Port Type: | Duplex |
| Media Type Supported: | Twisted Pair |
| Media Type Supported: | Optical Fiber |
| Fiber Mode Supported: | Multi-mode |
| Fiber Optic Cable Wavelength: | 850 nm |
| Maximum Distance Supported: | 0.55 km |
| Fiber Optic Cable Core/Cladding Specification: | 62.5/125 µm |
| Fiber Optic Cable Core/Cladding Specification: | 50/125 µm |
| Ethernet Technology: | Gigabit Ethernet |
| Network Technology: | 10/100/1000Base-T |
| Network Technology: | 1000Base-SX |
| Network Technology: | 10Base-T |
| Network Technology: | 100Base-TX |
| Network Technology: | 1000Base-X |
| Network Technology: | 10/100/1000Base-TX |
| Power Source: | Power Adapter |
| Plug/Connector Type: | DC Jack |
| Form Factor: | Compact |
| Form Factor: | Desktop |
| Form Factor: | Wall Mountable |
| Form Factor: | Rack-mountable |
| Form Factor: | Chassis Mount |
| Height: | 2.8" |
| Width: | 3.7" |
| Depth: | 1" |
| Weight (Approximate): | 10.58 oz |
| Package Contents: |
|
| Application/Usage: | Network |
| Application/Usage: | Router |
| Compatibility: | Intellinet 507356 14-Slot Media Converter Chassis |
| Certifications & Standards: |
|
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance: | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin: | China |
| Limited Warranty: | 3 Year |
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
- UPC: 766623508544
- Mfr's Part #: 508544
